S67減速機重量：S67減速機重量26公斤，S67減速機配電機重量分別如下

S67減速機配0.25KW電機重量36公斤，S67減速機配0.37KW電機重量36.5公斤，S67減速機配0.55KW電機重量41公斤，S67減速機配0.75KW電機重量42公斤，S67減速機配1.1KW電機重量46公斤，S67減速機配1.5KW電機重量49公斤，S67減速機配2.2KW電機重量58公斤，S67減速機配3KW電機重量61公斤，S67減速機配4KW電機重量72公斤，S67減速機配5.5KW電機重量86公斤。S系列減速機

S67減速機加油量：可加礦物油

S67減速機M1安裝加1升，S67減速機M2安裝加2升，S67減速機M3安裝加2.2/3.1升，S67減速機M4安裝加3.1升，S67減速機M5安裝加2.6升，S67減速機M6安裝加2.6升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

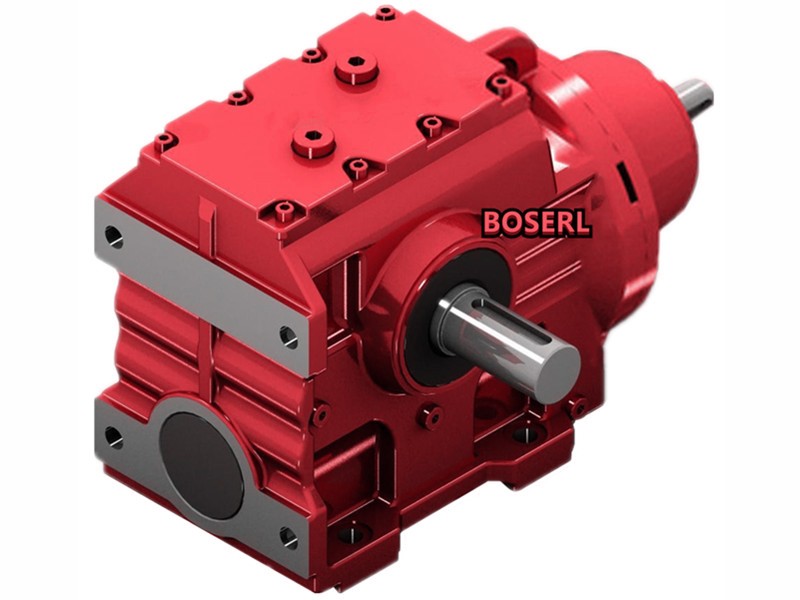

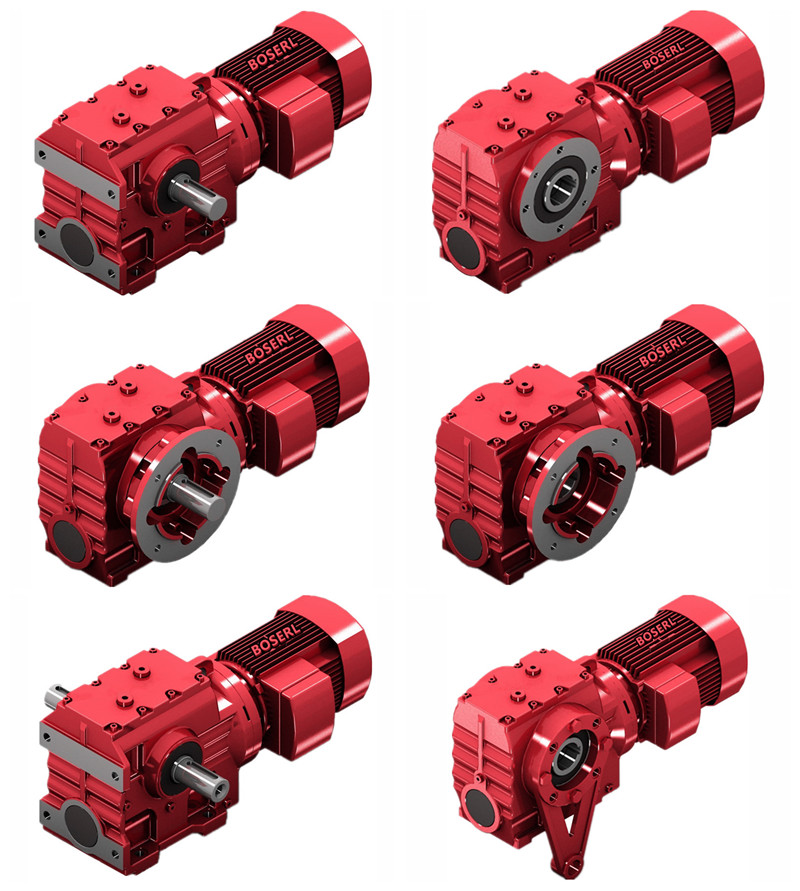

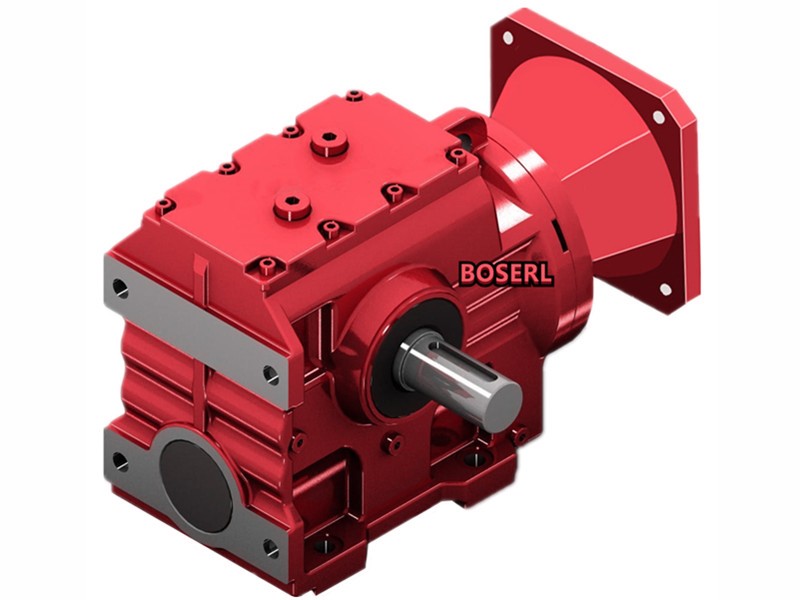

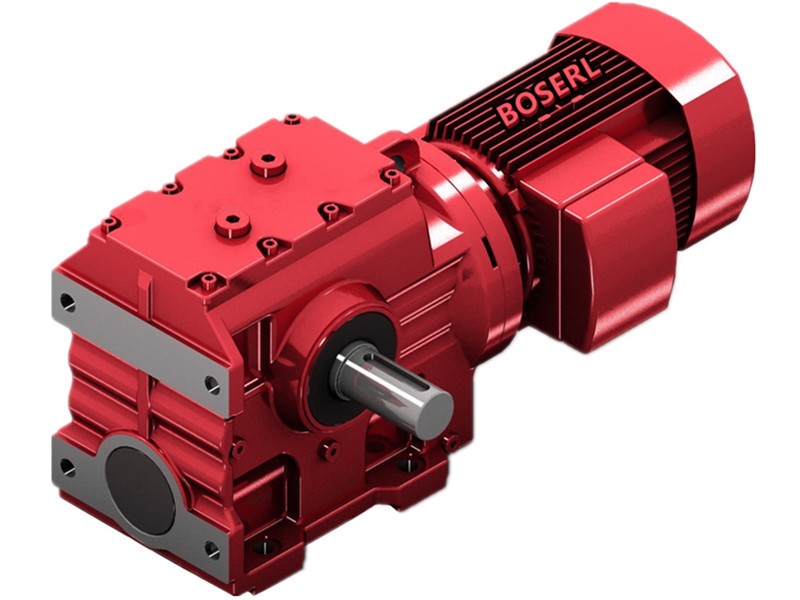

S67減速機實物圖：圖一為S67帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖二SF67具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖三為SA67臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖四為SAF67立式通孔斜齒輪減速機。

S67減速機型號表示方法：

S67減速機型號結構S67-B5.5KW-4P-減速比-安裝方式-接線盒位置。

S67減速機性能參數表結構說明：E編碼器，T扭力臂，K代表服務系數，Frame size代表基座規格，HF手動釋放裝置帶自鎖功能，TF電機熱保護裝置，S67、SF67、SA67、SAF67減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

S67減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。自鎖減速機

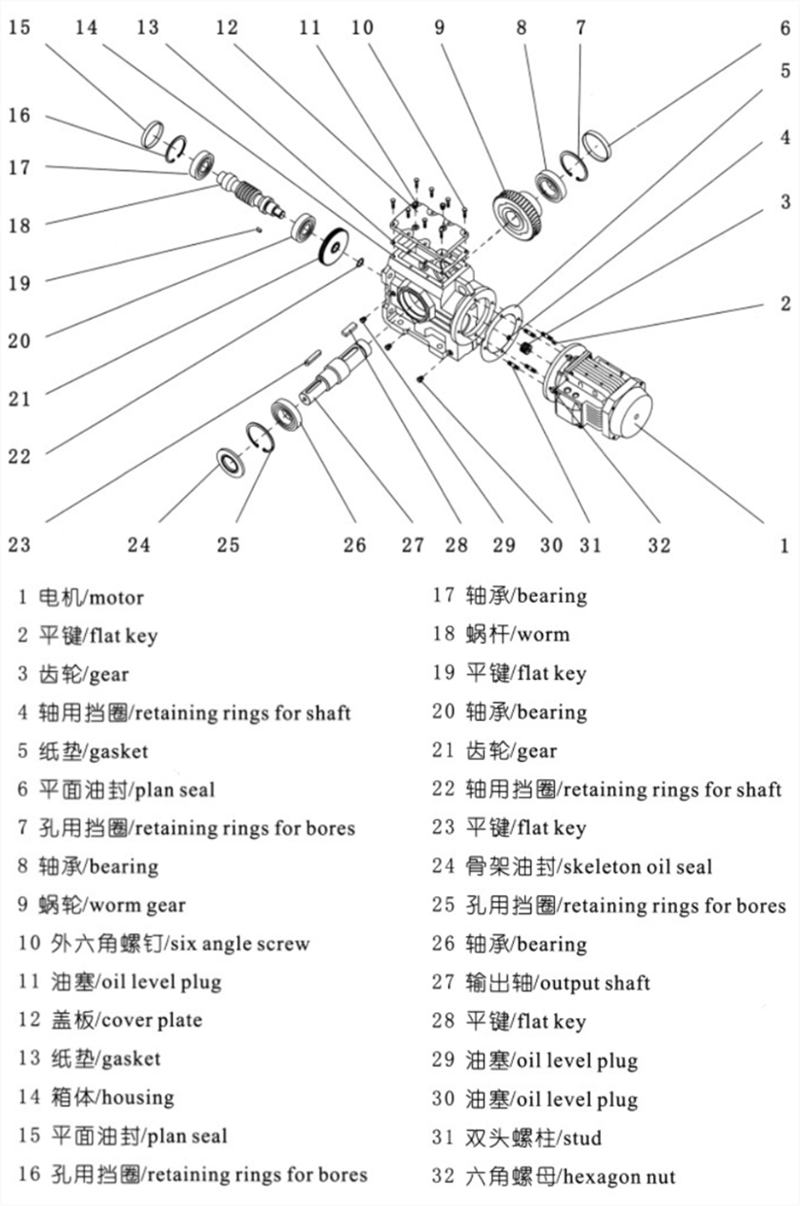

S67減速機結構圖：

S67減速機參數：

S67減速機電機可配三相/直流/變頻/剎車/防爆/伺服/交流/單相電機S67配S67配0.25KW，S67配0.37KW，S67配0.55KW，S67配0.75KW，S67配1.1KW，S67配1.5KW，S67配2.2KW，S67配3KW，S67配4KW，S67配5.5KW。

S67減速機減速比217.41比，190.11比，180.6比，158.45比，134.4比，121.33比，106.75比，100.8比，85.83比，78比，75.06比，67.57比，65.63比，62.35比，58.8比，54.7比，46.4比，41.89比，36.85比，34.8比，29.63比，26.93比，24.44比，23.33比，23.22比，20.37比，20.3比，17.28比，15.60比，13.73比，12.96比，11.03比，10.03比，8.69比，7.56比。

S67減速機輸出轉數6.4轉，7.4轉，7.8轉，8.8轉，10轉，12轉，13轉，14轉，16轉，18轉，19轉，21轉，22轉，24轉，26轉，30轉，33轉，38轉，40轉，47轉，52轉，57轉，60轉，69轉，81轉，90轉，102轉，108轉，127轉，140轉，161轉，185轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

S67減速機輸出扭矩240N.m，295N.m，335N.m，340N.m，425N.m，480N.m，500N.m，520N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

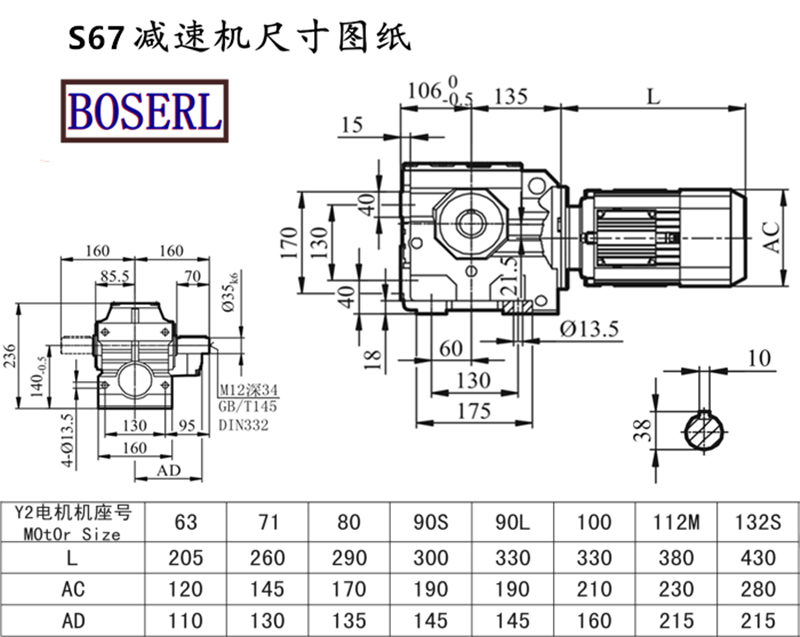

S67減速機尺寸圖紙：高236*寬250（帶輸出軸）*長241

S67減速機型號：S67AQA80,S67AQA100,S67AQA115,S67AQA140,S67AQA160,S67AQA190,S67AQH80,S67AQH100,S67AQH115,S67AQH140,S67AQH160,S67AQH190,JRTS67-Y0.18KW,JRTS67-Y0.25KW,JRTS67-Y0.37KW,JRTS67-Y0.55KW,JRTS67-Y0.75KW,JRTS67-Y1.1KW,JRTS67-Y1.5KW,JRTS67-Y100M4,JRTS67-Y112M4,JRTS67-Y132M4,JRTS67-Y2.2KW,JRTS67-Y3KW,JRTS67-Y4KW,JRTS67-Y5.5KW,JRTS67-Y63M4,JRTS67-Y71M4,JRTS67-Y80M4,JRTS67-Y90M4,JRTS67-YEJ100M4,JRTS67-YEJ112M4,JRTS67-YEJ132M4,JRTS67-YEJ63M4,JRTS67-YEJ71M4,JRTS67-YEJ80M4,JRTS67-YEJ90M4,JRTS67-YS100M4,JRTS67-YS112M4,JRTS67-YS132M4,JRTS67-YS63M4,JRTS67-YS71M4,JRTS67-YS80M4,JRTS67-YS90M4,JRTS67-YVP100M4,JRTS67-YVP112M4,JRTS67-YVP132M4,JRTS67-YVP63M4,JRTS67-YVP71M4,JRTS67-YVP80M4,JRTS67-YVP90M4,JRTS67-YVPEJ100M4,JRTS67-YVPEJ112M4,JRTS67-YVPEJ132M4,JRTS67-YVPEJ63M4,JRTS67-YVPEJ71M4,JRTS67-YVPEJ80M4,JRTS67-YVPEJ90M4,EWS67-Y0.18KW,EWS67-Y0.25KW,EWS67-Y0.37KW,EWS67-Y0.55KW,EWS67-Y0.75KW,EWS67-Y1.1KW,EWS67-Y1.5KW,EWS67-Y100M4,EWS67-Y112M4,EWS67-Y132M4,EWS67-Y2.2KW,EWS67-Y3KW,EWS67-Y4KW,EWS67-Y5.5KW,EWS67-Y63M4,EWS67-Y71M4,EWS67-Y80M4,EWS67-Y90M4,EWS67-YEJ100M4,EWS67-YEJ112M4,EWS67-YEJ132M4,EWS67-YEJ63M4,EWS67-YEJ71M4,EWS67-YEJ80M4,EWS67-YEJ90M4,EWS67-YS100M4,EWS67-YS112M4,EWS67-YS132M4,EWS67-YS63M4,EWS67-YS71M4,EWS67-YS80M4,EWS67-YS90M4,EWS67-YVP100M4,EWS67-YVP112M4,EWS67-YVP132M4,EWS67-YVP63M4,EWS67-YVP71M4,EWS67-YVP80M4,EWS67-YVP90M4,EWS67-YVPEJ100M4,EWS67-YVPEJ112M4,EWS67-YVPEJ132M4,EWS67-YVPEJ63M4,EWS67-YVPEJ71M4,EWS67-YVPEJ80M4,EWS67-YVPEJ90M4,SLS67-Y0.18KW,SLS67-Y0.25KW,SLS67-Y0.37KW,SLS67-Y0.55KW,SLS67-Y0.75KW,SLS67-Y1.1KW,SLS67-Y1.5KW,SLS67-Y100M4,SLS67-Y112M4,SLS67-Y132M4,SLS67-Y2.2KW,SLS67-Y3KW,SLS67-Y4KW,SLS67-Y5.5KW,SLS67-Y63M4,SLS67-Y71M4,SLS67-Y80M4,SLS67-Y90M4,SLS67-YEJ100M4,SLS67-YEJ112M4,SLS67-YEJ132M4,SLS67-YEJ63M4,SLS67-YEJ71M4,SLS67-YEJ80M4,SLS67-YEJ90M4,SLS67-YS100M4,SLS67-YS112M4,SLS67-YS132M4,SLS67-YS63M4,SLS67-YS71M4,SLS67-YS80M4,SLS67-YS90M4,SLS67-YVP100M4,SLS67-YVP112M4,SLS67-YVP132M4,SLS67-YVP63M4,SLS67-YVP71M4,SLS67-YVP80M4,SLS67-YVP90M4,SLS67-YVPEJ100M4,SLS67-YVPEJ112M4,SLS67-YVPEJ132M4,SLS67-YVPEJ63M4,SLS67-YVPEJ71M4,SLS67-YVPEJ80M4,SLS67-YVPEJ90M4,DSZS67-Y0.18KW,DSZS67-Y0.25KW,DSZS67-Y0.37KW,DSZS67-Y0.55KW,DSZS67-Y0.75KW,DSZS67-Y1.1KW,DSZS67-Y1.5KW,DSZS67-Y100M4,DSZS67-Y112M4,DSZS67-Y132M4,DSZS67-Y2.2KW,DSZS67-Y3KW,DSZS67-Y4KW,DSZS67-Y5.5KW,DSZS67-Y63M4,DSZS67-Y71M4,DSZS67-Y80M4,DSZS67-Y90M4,DSZS67-YEJ100M4,DSZS67-YEJ112M4,DSZS67-YEJ132M4,DSZS67-YEJ63M4,DSZS67-YEJ71M4,DSZS67-YEJ80M4,DSZS67-YEJ90M4,DSZS67-YS100M4,DSZS67-YS112M4,DSZS67-YS132M4,DSZS67-YS63M4,DSZS67-YS71M4,DSZS67-YS80M4,DSZS67-YS90M4,DSZS67-YVP100M4,DSZS67-YVP112M4,DSZS67-YVP132M4,DSZS67-YVP63M4,DSZS67-YVP71M4,DSZS67-YVP80M4,DSZS67-YVP90M4,DSZS67-YVPEJ100M4,DSZS67-YVPEJ112M4,DSZS67-YVPEJ132M4,DSZS67-YVPEJ63M4,DSZS67-YVPEJ71M4,DSZS67-YVPEJ80M4,DSZS67-YVPEJ90M4,BS67-Y0.18KW,BS67-Y0.25KW,BS67-Y0.37KW,BS67-Y0.55KW,BS67-Y0.75KW,BS67-Y1.1KW,BS67-Y1.5KW,BS67-Y100M4,BS67-Y112M4,BS67-Y132M4,BS67-Y2.2KW,BS67-Y3KW,BS67-Y4KW,BS67-Y5.5KW,BS67-Y63M4,BS67-Y71M4,BS67-Y80M4,BS67-Y90M4,BS67-YEJ100M4,BS67-YEJ112M4,BS67-YEJ132M4,BS67-YEJ63M4,BS67-YEJ71M4,BS67-YEJ80M4,BS67-YEJ90M4,BS67-YS100M4,BS67-YS112M4,BS67-YS132M4,BS67-YS63M4,BS67-YS71M4,BS67-YS80M4,BS67-YS90M4,BS67-YVP100M4,BS67-YVP112M4,BS67-YVP132M4,BS67-YVP63M4,BS67-YVP71M4,BS67-YVP80M4,BS67-YVP90M4,BS67-YVPEJ100M4,BS67-YVPEJ112M4,BS67-YVPEJ132M4,BS67-YVPEJ63M4,BS67-YVPEJ71M4,BS67-YVPEJ80M4,BS67-YVPEJ90M4,GS67-Y0.18KW,GS67-Y0.25KW,GS67-Y0.37KW,GS67-Y0.55KW,GS67-Y0.75KW,GS67-Y1.1KW,GS67-Y1.5KW,GS67-Y100M4,GS67-Y112M4,GS67-Y132M4,GS67-Y2.2KW,GS67-Y3KW,GS67-Y4KW,GS67-Y5.5KW,GS67-Y63M4,GS67-Y71M4,GS67-Y80M4,GS67-Y90M4,GS67-YEJ100M4,GS67-YEJ112M4,GS67-YEJ132M4,GS67-YEJ63M4,GS67-YEJ71M4,GS67-YEJ80M4,GS67-YEJ90M4,GS67-YS100M4,GS67-YS112M4,GS67-YS132M4,GS67-YS63M4,GS67-YS71M4,GS67-YS80M4,GS67-YS90M4,GS67-YVP100M4,GS67-YVP112M4,GS67-YVP132M4,GS67-YVP63M4,GS67-YVP71M4,GS67-YVP80M4,GS67-YVP90M4,GS67-YVPEJ100M4,GS67-YVPEJ112M4,GS67-YVPEJ132M4,GS67-YVPEJ63M4,GS67-YVPEJ71M4,GS67-YVPEJ80M4,GS67-YVPEJ90M4,SC67-Y0.18KW,SC67-Y0.25KW,SC67-Y0.37KW,SC67-Y0.55KW,SC67-Y0.75KW,SC67-Y1.1KW,SC67-Y1.5KW,SC67-Y100M4,SC67-Y112M4,SC67-Y132M4,SC67-Y2.2KW,SC67-Y3KW,SC67-Y4KW,SC67-Y5.5KW,SC67-Y63M4,SC67-Y71M4,SC67-Y80M4,SC67-Y90M4,SC67-YEJ100M4,SC67-YEJ112M4,SC67-YEJ132M4,SC67-YEJ63M4,SC67-YEJ71M4,SC67-YEJ80M4,SC67-YEJ90M4,SC67-YS100M4,SC67-YS112M4,SC67-YS132M4,SC67-YS63M4,SC67-YS71M4,SC67-YS80M4,SC67-YS90M4,SC67-YVP100M4,SC67-YVP112M4,SC67-YVP132M4,SC67-YVP63M4,SC67-YVP71M4,SC67-YVP80M4,SC67-YVP90M4,SC67-YVPEJ100M4,SC67-YVPEJ112M4,SC67-YVPEJ132M4,SC67-YVPEJ63M4,SC67-YVPEJ71M4,SC67-YVPEJ80M4,SC67-YVPEJ90M4,MTN67-Y0.18KW,MTN67-Y0.25KW,MTN67-Y0.37KW,MTN67-Y0.55KW,MTN67-Y0.75KW,MTN67-Y1.1KW,MTN67-Y1.5KW,MTN67-Y100M4,MTN67-Y112M4,MTN67-Y132M4,MTN67-Y2.2KW,MTN67-Y3KW,MTN67-Y4KW,MTN67-Y5.5KW,MTN67-Y63M4,MTN67-Y71M4,MTN67-Y80M4,MTN67-Y90M4,MTN67-YEJ100M4,MTN67-YEJ112M4,MTN67-YEJ132M4,MTN67-YEJ63M4,MTN67-YEJ71M4,MTN67-YEJ80M4,MTN67-YEJ90M4,MTN67-YS100M4,MTN67-YS112M4,MTN67-YS132M4,MTN67-YS63M4,MTN67-YS71M4,MTN67-YS80M4,MTN67-YS90M4,MTN67-YVP100M4,MTN67-YVP112M4,MTN67-YVP132M4,MTN67-YVP63M4,MTN67-YVP71M4,MTN67-YVP80M4,MTN67-YVP90M4,MTN67-YVPEJ100M4,MTN67-YVPEJ112M4,MTN67-YVPEJ132M4,MTN67-YVPEJ63M4,MTN67-YVPEJ71M4,MTN67-YVPEJ80M4,MTN67-YVPEJ90M4,WXS67-WSS0.18KW,WXS67-WSS0.25KW,WXS67-WSS0.37KW,WXS67-WSS0.55KW,WXS67-WSS0.75KW,WXS67-WSS1.1KW,WXS67-WSS1.5KW,WXS67-WSS100M4,WXS67-WSS112M4,WXS67-WSS132M4,WXS67-WSS2.2KW,WXS67-WSS3KW,WXS67-WSS4KW,WXS67-WSS5.5KW,WXS67-WSS63M4,WXS67-WSS71M4,WXS67-WSS80M4,WXS67-WSS90M4,WXS67-WSSB100M4,WXS67-WSSB112M4,WXS67-WSSB132M4,WXS67-WSSB63M4,WXS67-WSSB71M4,WXS67-WSSB80M4,WXS67-WSSB90M4,WXS67-WSSVP100M4,WXS67-WSSVP112M4,WXS67-WSSVP132M4,WXS67-WSSVP63M4,WXS67-WSSVP71M4,WXS67-WSSVP80M4,WXS67-WSSVP90M4,WXS67-WSSVPB100M4,WXS67-WSSVPB112M4,WXS67-WSSVPB132M4,WXS67-WSSVPB63M4,WXS67-WSSVPB71M4,WXS67-WSSVPB80M4,WXS67-WSSVPB90M4。

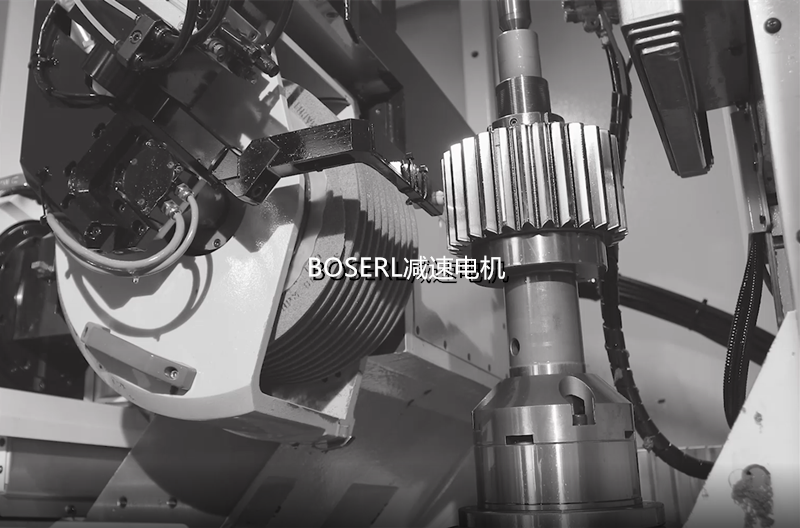

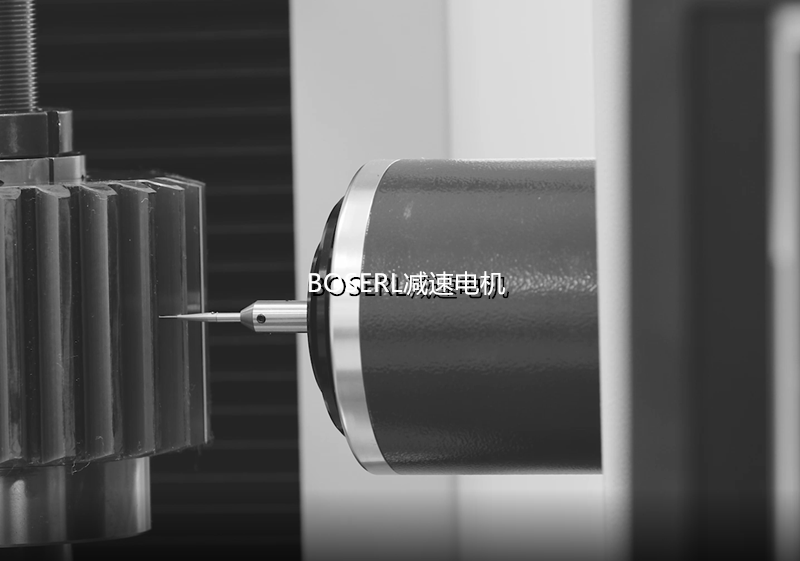

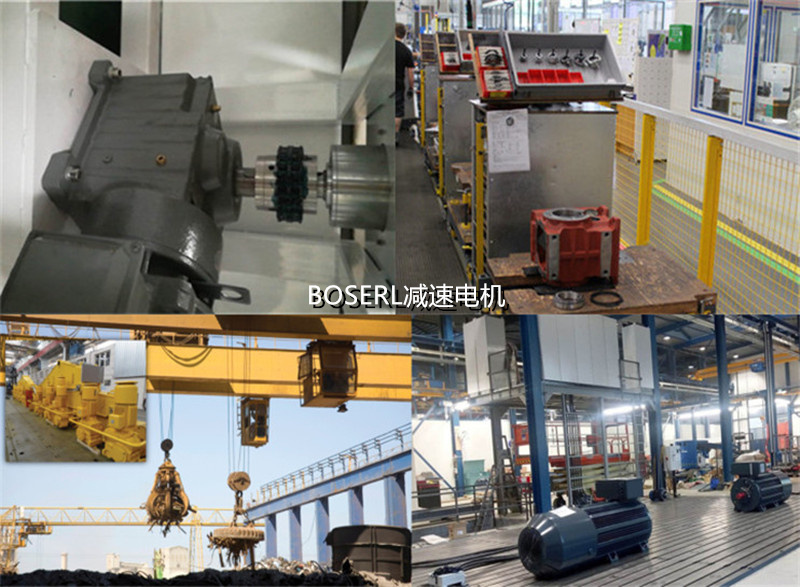

S67減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.95105886.com/product/list-sxiliejiansuji-cn.html

推薦類似型號：S57減速機
